Please see Danny Holten's site for information about the ExTraVis visualization software. http://www.win.tue.nl/~dholten/extravis/index.htm
Any Xholon application can write itself out as a file that can be read in by ExTraVis. The following is an example.
"LevelSeparator" "/" "ElmType" "0" "Node" "RelType" "0" "CallDynamicChronologic" "int:Increment" "sig:Signature" "string:Method" "HierarchyDepth" "5" "HierarchyElements" "29" "ParentChildRelations" "28" "Signatures" "1" "Relations" "23" "Root" "0" "H" "0" "00ExtraCellularSpace" "0" "H" "1" "01ExtraCellularSpace/ExtraCellularSolution" "0" "H" "2" "02ExtraCellularSpace/ExtraCellularSolution/Glucose" "0" "H" "3" "03ExtraCellularSpace/EukaryoticCell" "0" "H" "4" "04ExtraCellularSpace/EukaryoticCell/CellMembrane" "0" "H" "5" "05ExtraCellularSpace/EukaryoticCell/CellMembrane/CellBilayer" "0" "H" "6" "06ExtraCellularSpace/EukaryoticCell/Cytoplasm" "0" "H" "7" "07ExtraCellularSpace/EukaryoticCell/Cytoplasm/Cytosol" "0" "H" "8" "08ExtraCellularSpace/EukaryoticCell/Cytoplasm/Cytosol/Glucose" "0" "H" "9" "09ExtraCellularSpace/EukaryoticCell/Cytoplasm/Cytosol/Glucose_6_Phosphate" "0" "H" "10" "10ExtraCellularSpace/EukaryoticCell/Cytoplasm/Cytosol/Fructose_6_Phosphate" "0" "H" "11" "11ExtraCellularSpace/EukaryoticCell/Cytoplasm/Cytosol/Fructose_1x6_Biphosphate" "0" "H" "12" "12ExtraCellularSpace/EukaryoticCell/Cytoplasm/Cytosol/DihydroxyacetonePhosphate" "0" "H" "13" "13ExtraCellularSpace/EukaryoticCell/Cytoplasm/Cytosol/Glyceraldehyde_3_Phosphate" "0" "H" "14" "14ExtraCellularSpace/EukaryoticCell/Cytoplasm/Cytosol/X1x3_BisphosphoGlycerate" "0" "H" "15" "15ExtraCellularSpace/EukaryoticCell/Cytoplasm/Cytosol/X3_PhosphoGlycerate" "0" "H" "16" "16ExtraCellularSpace/EukaryoticCell/Cytoplasm/Cytosol/X2_PhosphoGlycerate" "0" "H" "17" "17ExtraCellularSpace/EukaryoticCell/Cytoplasm/Cytosol/PhosphoEnolPyruvate" "0" "H" "18" "18ExtraCellularSpace/EukaryoticCell/Cytoplasm/Cytosol/Pyruvate" "0" "H" "19" "19ExtraCellularSpace/EukaryoticCell/Cytoplasm/Hexokinase" "0" "H" "20" "20ExtraCellularSpace/EukaryoticCell/Cytoplasm/PhosphoGlucoIsomerase" "0" "H" "21" "21ExtraCellularSpace/EukaryoticCell/Cytoplasm/PhosphoFructokinase" "0" "H" "22" "22ExtraCellularSpace/EukaryoticCell/Cytoplasm/Aldolase" "0" "H" "23" "23ExtraCellularSpace/EukaryoticCell/Cytoplasm/TriosePhosphateIsomerase" "0" "H" "24" "24ExtraCellularSpace/EukaryoticCell/Cytoplasm/Glyceraldehyde_3_phosphateDehydrogenase" "0" "H" "25" "25ExtraCellularSpace/EukaryoticCell/Cytoplasm/PhosphoGlycerokinase" "0" "H" "26" "26ExtraCellularSpace/EukaryoticCell/Cytoplasm/PhosphoGlyceromutase" "0" "H" "27" "27ExtraCellularSpace/EukaryoticCell/Cytoplasm/Enolase" "0" "H" "28" "28ExtraCellularSpace/EukaryoticCell/Cytoplasm/PyruvateKinase" "0" "PCR" "0" "1" "PCR" "1" "2" "PCR" "0" "3" "PCR" "3" "4" "PCR" "4" "5" "PCR" "3" "6" "PCR" "6" "7" "PCR" "7" "8" "PCR" "7" "9" "PCR" "7" "10" "PCR" "7" "11" "PCR" "7" "12" "PCR" "7" "13" "PCR" "7" "14" "PCR" "7" "15" "PCR" "7" "16" "PCR" "7" "17" "PCR" "7" "18" "PCR" "6" "19" "PCR" "6" "20" "PCR" "6" "21" "PCR" "6" "22" "PCR" "6" "23" "PCR" "6" "24" "PCR" "6" "25" "PCR" "6" "26" "PCR" "6" "27" "PCR" "6" "28" "S" "0" "DummySignature" "R" "5" "2" "0" "9" "0" "DummyString" "R" "5" "8" "0" "9" "0" "DummyString" "R" "19" "8" "0" "9" "0" "DummyString" "R" "19" "9" "0" "9" "0" "DummyString" "R" "20" "9" "0" "9" "0" "DummyString" "R" "20" "10" "0" "9" "0" "DummyString" "R" "21" "10" "0" "9" "0" "DummyString" "R" "21" "11" "0" "9" "0" "DummyString" "R" "22" "11" "0" "9" "0" "DummyString" "R" "22" "13" "0" "9" "0" "DummyString" "R" "22" "12" "0" "9" "0" "DummyString" "R" "23" "12" "0" "9" "0" "DummyString" "R" "23" "13" "0" "9" "0" "DummyString" "R" "24" "13" "0" "9" "0" "DummyString" "R" "24" "14" "0" "9" "0" "DummyString" "R" "25" "14" "0" "9" "0" "DummyString" "R" "25" "15" "0" "9" "0" "DummyString" "R" "26" "15" "0" "9" "0" "DummyString" "R" "26" "16" "0" "9" "0" "DummyString" "R" "27" "16" "0" "9" "0" "DummyString" "R" "27" "17" "0" "9" "0" "DummyString" "R" "28" "17" "0" "9" "0" "DummyString" "R" "28" "18" "0" "9" "0" "DummyString"

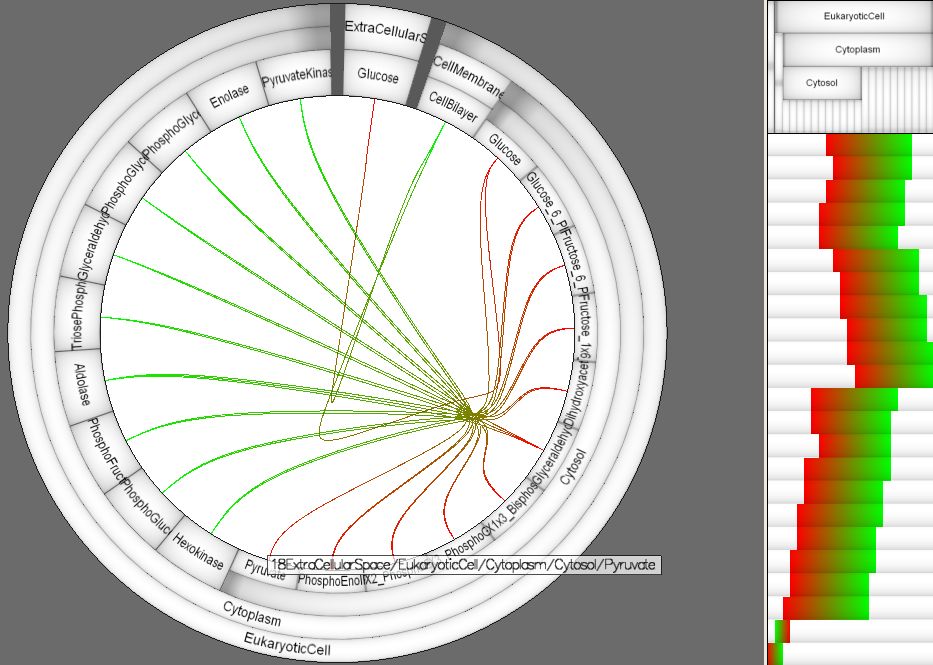

The following diagram shows the ExTraVis visualization. The diagram includes the named nodes (H for Hierarchy Elements), the relations between nodes (R for relation), and the hierarchical structure (PCR for parent child relationship).
